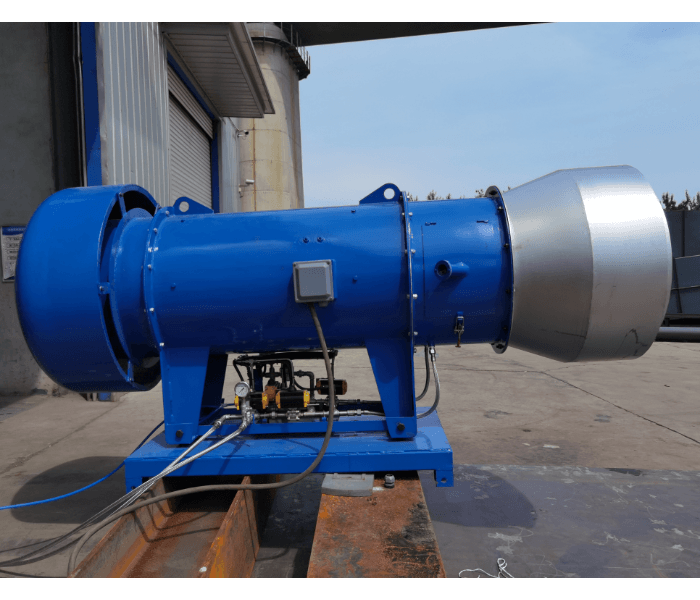

What is YQ-Series Dual-Functional Oil and Gas Burner?
The YQ-Series Dual-Functional Oil and Gas Burner is an innovative heating system designed to provide versatility and efficiency in various industrial applications. This burner is specifically engineered to accommodate both liquid fuel and natural gas, offering users the flexibility to choose the most cost-effective and readily available fuel source for their specific needs. The burner and fan are integrated into one unit, using a centrifugal high-pressure fan. The compact structure and stable high air pressure ensure thorough combustion of the fuel in the combustion chamber. PLC program controller is used for automatic control and supervision of the burner’s operation.
It has the advantages of low energy consumption for both fuel and gas, simple operation, and a wide range of applicable fuels. On average, less than 6kg of oil and less than 6.5 cubic meters of gas are consumed for producing 1 ton of mixed material. It adopts an axial-flow integrated high-pressure fan supply system, gas proportional control motor, Siemens VGD valve group, PLC touch screen, and frequency conversion control system. The YQ series burner features automatic ignition, automatic temperature control, fault alarm locking, low noise, stable air supply, and low failure rate.
Fuel:
Natural Gas – Calorific Value: Hi = 35.80 MJ/m³
Heavy Oil – Calorific Value: Hi = 40.19MJ/kg = 9600 kcal/kg
The maximum viscosity of the fuel (heavy residual oil) supplied to the burner is 9.5°E at 100℃. The fuel intake for the burner (heavy residual oil) needs to be filtered before entering the oil pump.
What is the Working Principle of Oil and Gas Burner?
The YQ-Series Dual-Functional Fuel and Gas Burner comes standard with an integrated burner, automatic control system, and fuel pump. Additional external components like air compressors, air storage tanks, and oil filters can be optionally selected based on user requirements.
- Operating Principle: The YQ-Series Dual-Functional Fuel and Gas Burner adjusts the speed of the oil pump and fan (precise positioning for gas valve) to achieve optimal air-fuel mixture, ensuring the flame remains in the best combustion state.
- Fuel Supply Mode: The system switches to diesel combustion during startup and shutdown, and automatically switches to heavy oil during normal operation. Advanced low-pressure non-return fuel supply significantly enhances pump lifespan while achieving excellent atomization and thorough combustion of both diesel and heavy oil.
- Pipeline Cleaning: To prevent residual oil condensation in the nozzle due to shutdown, the oil pump can be reversed to clean the oil line, unclog the oil pipeline and oil tank, making maintenance extremely convenient.
- Gas Supply Mode: When burning gas, the corresponding relationship between gas flow and pressure before the nozzle allows precise pressure control through valve adjustment. This not only accurately regulates the air-fuel ratio but also prevents fluctuations in gas source pressure from affecting the air-fuel ratio (far superior to conventional burners).
Why Choose Dual-Functional Oil and Gas Burner?
- High Intelligence: Unique flame control technology enables one-click start/stop, self-diagnosis of faults, automatic monitoring, and data recording. The process is user-friendly.
- High Stability: Automatic re-ignition during flameout ensures continuous and stable production even after interruptions.
- High Safety: Multiple interlock protections prevent explosions and accidents fundamentally.
- High Environmental Standards: Excellent heavy oil atomization and automatic system regulation maintain optimal combustion, saving fuel by 10-30%. Low noise pollution and environmental impact.
- Unique Non-disassembly Maintenance: Special control technology clears residual oil and unclogs pipes after power failure, enabling maintenance without disassembly.
- Exceptional Cost-effectiveness: Renowned global brands supply key components like PLC, frequency converters, and transmitters. Despite its advanced technology, the price is comparable to mid-range imported burners.
- User-friendly Interface: The true-color touch screen facilitates parameter setting and monitoring, providing detailed bilingual fault self-diagnosis information for prompt troubleshooting.
